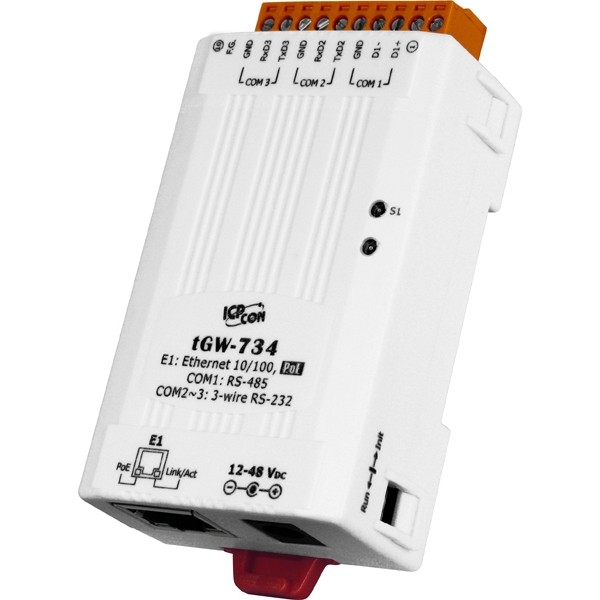

Convertor de protocol industrial ICPDAS TGW-734, Ethernet, RS-232, RS-485, conversie Modbus TCP - RTU
Descriere produs
|
Specificatii |
Models: tGW-734 |
|
|
Sistem |
||
|
CPU |
32-bit ARM |
|
|
Interfata comunicatii |
||
|
Ethernet |
10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
|
|
COM1 |
RS-485, 2-fire |
|
|
COM2 |
RS-232, 3 fire |
|
|
COM3 |
RS-232, 3 fire |
|
|
Auto-Tuner |
||
|
RS-485 |
Bias Resistor |
Da, 1 KΩ |
|
Node |
254 (max.) |
|
|
UART |
16c550 sau compatibil |
|
|
ESD Protection |
+/-4 kV |
|
|
Format Port COM |
||
|
Baud Rate |
115200 bps Max. |
|
|
Data Bit |
5, 6, 7, 8 |
|
|
Parity |
None, Odd, Even, Mark, Space |
|
|
Stop Bit |
1, 2 |
|
|
Alimentare |
||
|
|
PoE |
PoE: IEEE 802.3af, Class 1 |
|
DC Jack |
+12 ~ 48 VDC |
|
|
Consum |
0.07 A @ 24 VDC |
|
|
Detalii suplimentare |
||
|
Conector |
10-Pin Removable Terminal Block x 1 |
|
|
Montare |
DIN-Rail |
|
|
Carcasa |
Plastic |
|
|
Informatii mediu |
||
|
Temperatura de functionare |
-25 ~ +75 °C |
|
|
Temperatura de depozitare |
-30 ~ +80 °C |
|
|
Documentatie tehnica: |
||
|
Livrare |
||
|
Cantitate minima comandata: 1 bucata |
||
